Wine column and undercounter wine storage repair

What usually lets a zone drift

The zone sensor

Each zone reads its own temperature. A sensor that has drifted makes the control hold the wrong number with complete confidence.

The fans

One fan moves cold air through the zone; another carries heat away from the machine compartment. A slow or stalled fan shows up as a unit that runs long and still loses ground.

The condenser

Dust on the coil behind the grille makes everything work harder. On the classic models a service light comes on when the condenser needs cleaning.

The door seal

A glass door that does not seal all the way round lets kitchen air in, and the zone nearest the gap suffers first.

The control board

It decides when everything runs. We test it last, because a sensor or fan fault can look exactly like a failed board.

The sealed system

Compressor, evaporator and refrigerant. Rarely the first suspect, and when it is the cause we say so plainly.

How the visit runs

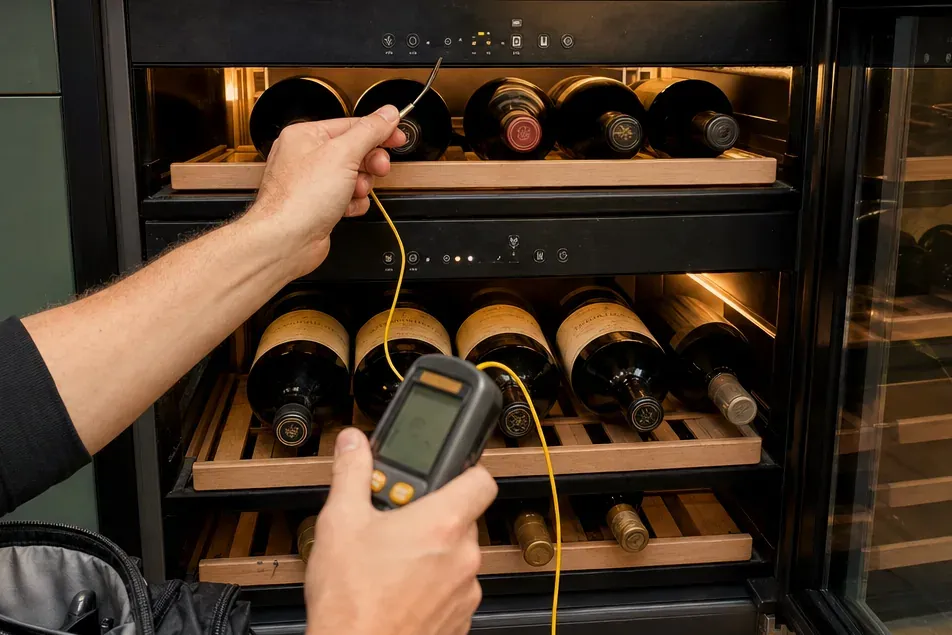

1. We read each zone with a probe among the bottles and compare it with its setting.

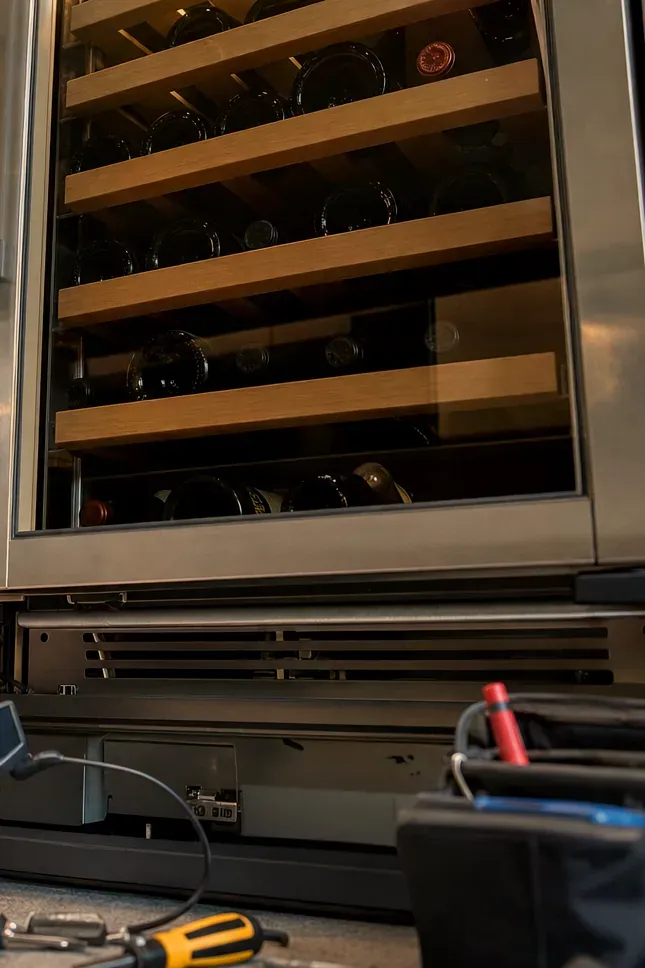

2. We open the grille and check the condenser, its fan and the air path around the base.
3. We test sensors and fans before we look at the control board.
4. You get the price of the repair before any work starts.

What it costs

The visit is $89 and includes the diagnosis; that $89 is credited against the repair if you go ahead. A zone sensor usually falls in the $270–$650 range and a fan motor in $340–$720; a sealed-system repair is a different order of cost. All the ranges are in the card beside this text, and each is a range, not a quote.

If your bottles are drifting rather than the unit failing outright, start with our page on wine zones that will not hold temperature. Condenser cleaning is described in Sub-Zero’s use and care guide.
